TSH凈化型風機箱
產(chǎn)品分類：小風量離心風機
點擊次數(shù)：868 次
上架時間：2021-12-15 17:16
全國服務熱線：020-84913508 / 020-84918260
我要詢價詳細介紹

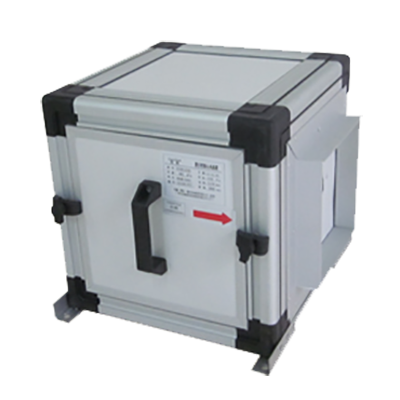

TSH凈化型風機箱
結構特點：
Structural features：
風機為電機直聯(lián)；
It is designed for direct connection;
葉輪采用后向葉輪，風量大噪音低，不過載；
The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading;
結構緊湊，安裝維護方便；
The fan is compact, so it is easy to installation and repair;
風機可在任意角度運行，靜壓高適宜在管道中通風。
The fan is suitable for operation at any angle and deliver exceptional airflow performances
against the high static pressures typically found in ducted ventilation systems.

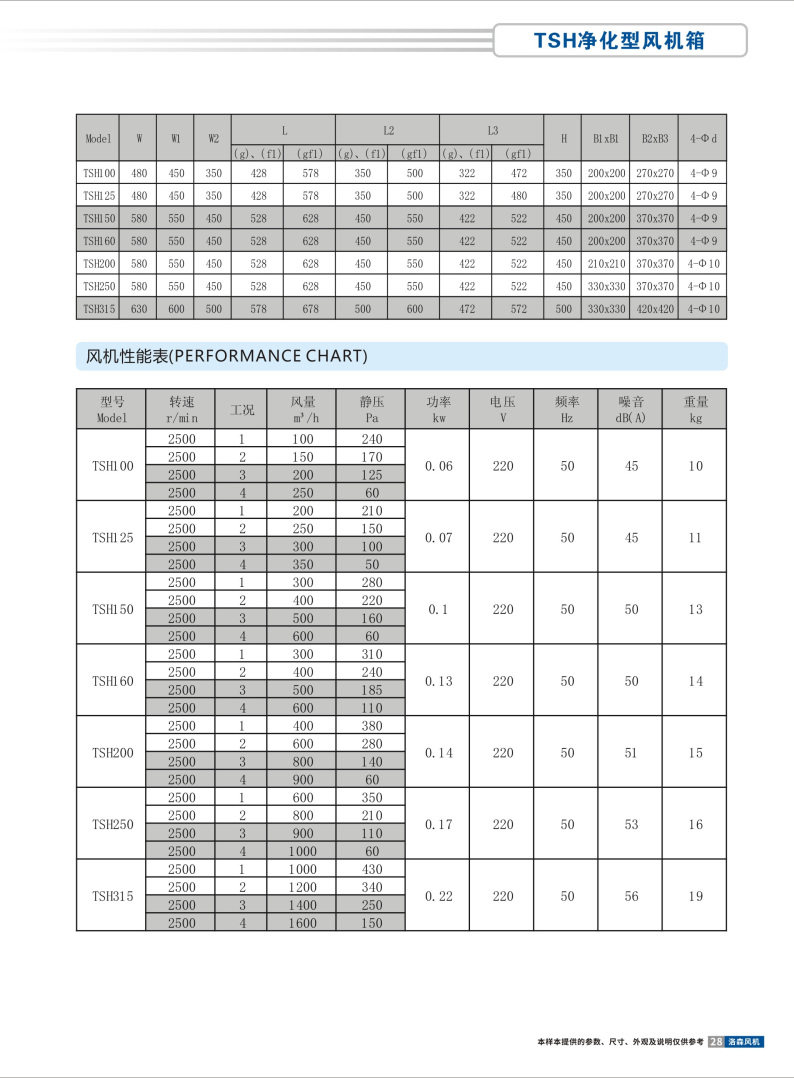

型號范圍：NO.100-315共7種機號
Model range: no. 100-315, 7 numbers in total
風量范圍：100-1600m3/h
Air volume range: 100-1600m3/h
靜壓范圍：50-430Pa
Static pressure range: 70-470Pa
適合用途：適用于工廠、大樓通風換氣。
Application: It is suitable for ventilation in factories and buildings.
